Dimensions
13 HP
45 mm deep
Current Draw
5 mA +12V
0 mA -12V
130 mA 5V
Price
$220 Price in €

This Module is currently available.

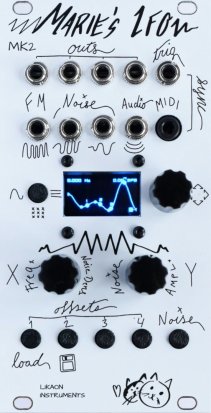

A quad LFO / envelope generator with a completely customizable waveform, based on Bézier curves.

The killer feature is the ability to draw a completely custom waveform, instead of tweaking around with sines, squares and triangles.

Marie’s LFO is a module where you can draw your own waveform by using Bézier curves (think about Adobe Illustrator or Inkscape’s paths)

You have the ability to select points and control points, and move them around to exactly define the output voltage evolution over time. Needless to say, the curve shape can be adjusted in real time.

There are three modes:

LFO

The LFO has 4 outputs, is synchronizable over MIDI or trigger, and includes a CV-controllable noise generator.

Envelope generator

The module can also become a quad envelope generator, and in this case the CV inputs become envelope triggers.

Audio mode (very experimental)

Marie's LFO features an audio output, but it is here only because it could be done :) For the moment the frequency management is not very accurate and will be enhanced in the future.

https://likaoninstruments.com/product/marie-lfo/
